• BLM series metal & nonmetal laser cutting and engraving machine

BLM series metal & nonmetal laser cutting and engraving machine


Introduction:
1.1390-1325 machine is a mixing cutting machine, specialized in cutting stainless steel, carbon steel, MDF, die board and wood.
2.High efficiency: The cutting speed of 1mm stainless steel is 30 mm/s.20mm-30mm acrylic with perfect cutting quality.
3.1390-1325  machine is matched with the stepper motor system or Panasonic Servo System and high precision.
4.1390-1325  machine with high precision, running stable and long-operation.
5.The sheet metal is not flat. But the system can sense a distance from the nozzle to the metal surface and follow the surface up and down to automatically adjust the certain focus distance for keeping high precision cutting quality.
6.High efficiency, high precision, stable performance and long life.Low running cost about 5KVA/hour.
Features:
1.High precision rack and linear guide system
2.Stepper motor Chinese servo system or imported Servo System
3.Untouched following system
4.Fixed beam optical system
Application Material:
Stainless steel, carbon steel, galvanized steel, acrylic, plywood, MDF and other materials.

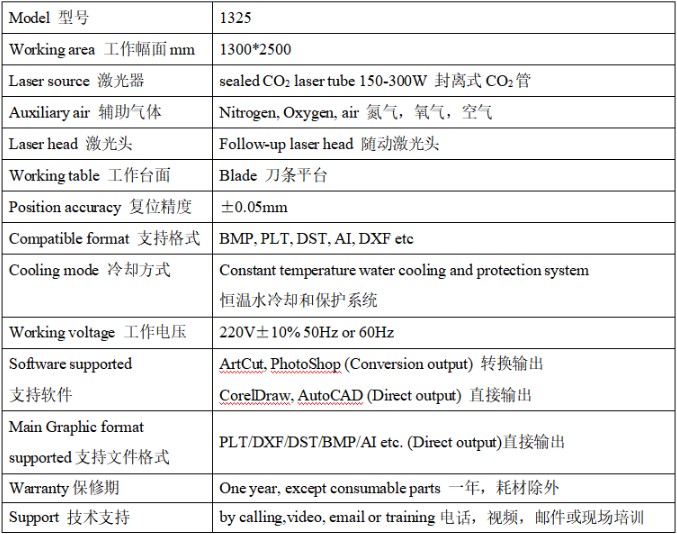

Technology Parameters:
